[Spring 개인] Spring Security OAuth2 + JWT

OAuth2 Code Grant

클라이언트 애플리케이션이 사용자 대신 리소스 서버에 접근할 수 있도록 하는 인증 프로토콜이다.

이 방식은 서버 측 애플리케이션에서 주로 사용되며, 클라이언트가 액세스 토큰을 안전하게 획득할 수 있도록 힌다.



동작순서

1. Authorization Request (인증 요청):
   • 클라이언트 애플리케이션은 사용자를 권한 부여 서버로 리다이렉션한다
   • 이 요청에는 response_type=code, client_id, redirect_uri, 그리고 scope가 포함된다
   • 사용자는 권한 부여 서버에서 로그인하고, 애플리케이션에 권한을 부여할지 결정한다
2. Authorization Response (인증 응답):
   • 사용자가 권한을 부여하면, 권한 부여 서버는 클라이언트를 redirect_uri로 리다이렉션하며, authorization code를 포함한 응답을 보낸다
   • 클라이언트는 이 authorization code를 수신한다
3. Token Request (토큰 요청):
   • 클라이언트는 받은 authorization code를 사용하여 권한 부여 서버에 액세스 토큰을 요청한다
   • 이 요청에는 grant_type=authorization_code, code, redirect_uri, client_id, 그리고 client_secret가 포함된다
4. Token Response (토큰 응답):
   • 권한 부여 서버는 요청을 검증한 후, 클라이언트에게 액세스 토큰과 리프레시 토큰을 발급한다
   • 클라이언트는 이 토큰을 저장하고, API 요청 시 사용한다
5. Accessing Resources (자원 접근):
   • 클라이언트 애플리케이션은 받은 액세스 토큰을 사용하여 리소스 서버에 요청을 보낸다
   • 리소스 서버는 액세스 토큰을 검증하고, 요청된 리소스를 반환한다

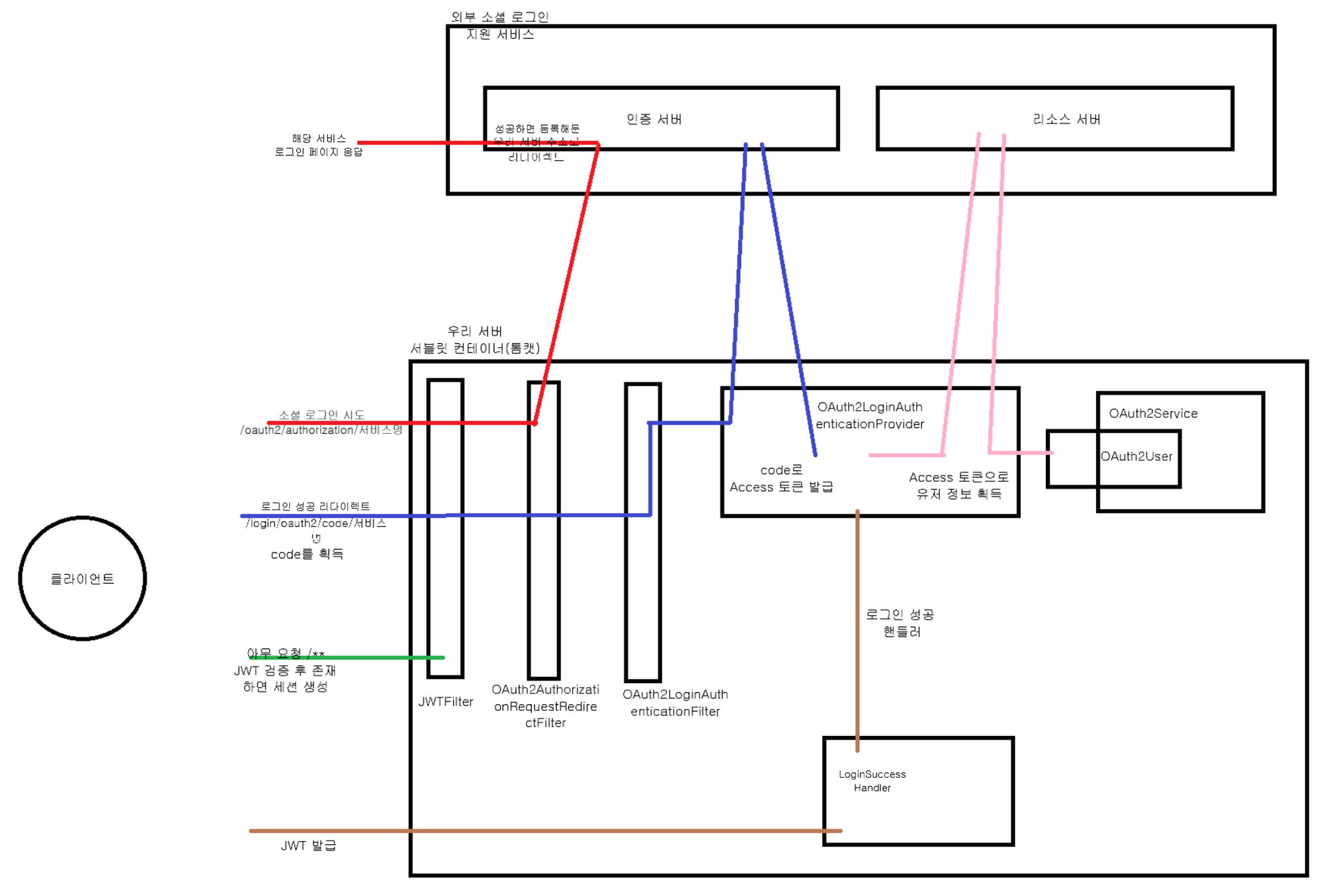

동작원리

---

build.gradle

plugins {
    id 'java'
    id 'org.springframework.boot' version '3.3.0'
    id 'io.spring.dependency-management' version '1.1.5'
}

group = 'kr.bit'
version = '0.0.1-SNAPSHOT'

java {
    sourceCompatibility = '17'
}

configurations {
    compileOnly {
        extendsFrom annotationProcessor
    }
}

repositories {
    mavenCentral()
}

dependencies {
//    implementation 'org.springframework.boot:spring-boot-starter-data-jpa'
    implementation 'org.springframework.boot:spring-boot-starter-oauth2-client'
    implementation 'org.springframework.boot:spring-boot-starter-security'
    implementation 'org.springframework.boot:spring-boot-starter-web'
    compileOnly 'org.projectlombok:lombok'
//    runtimeOnly 'com.mysql:mysql-connector-j'
    annotationProcessor 'org.projectlombok:lombok'
    testImplementation 'org.springframework.boot:spring-boot-starter-test'
    testImplementation 'org.springframework.security:spring-security-test'
    testRuntimeOnly 'org.junit.platform:junit-platform-launcher'
    implementation 'io.jsonwebtoken:jjwt-api:0.12.3'
    implementation 'io.jsonwebtoken:jjwt-impl:0.12.3'
    implementation 'io.jsonwebtoken:jjwt-jackson:0.12.3'
}

tasks.named('test') {
    useJUnitPlatform()
}



Controller

package kr.bit.oauth2jwt.controller;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Configuration
public class MainController {

    @GetMapping("/")
    @ResponseBody
    public String mainAPI() {
        return "main route";
    }
}

package kr.bit.oauth2jwt.controller;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.ResponseBody;

@Configuration
public class MyController {

    @GetMapping("/my")
    @ResponseBody
    public String myAPI() {
        return "my route";
    }
}





SecurityConfig

package kr.bit.oauth2jwt.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {

        //csrf disable
        http
                .csrf((auth) -> auth.disable());

        //From 로그인 방식 disable
        http
                .formLogin((auth) -> auth.disable());

        //HTTP Basic 인증 방식 disable
        http
                .httpBasic((auth) -> auth.disable());

        //oauth2
        http
                .oauth2Login(Customizer.withDefaults());

        //경로별 인가 작업
        http
                .authorizeHttpRequests((auth) -> auth
                        .requestMatchers("/").permitAll()
                        .anyRequest().authenticated());

        //세션 설정 : STATELESS
        http
                .sessionManagement((session) -> session
                        .sessionCreationPolicy(SessionCreationPolicy.STATELESS));

        return http.build();
    }
}

---

application.properties

#NAVER
#registration
spring.security.oauth2.client.registration.naver.client-name=naver
spring.security.oauth2.client.registration.naver.client-id=아이디
spring.security.oauth2.client.registration.naver.client-secret=비밀번호
spring.security.oauth2.client.registration.naver.redirect-uri=http://localhost:8080/login/oauth2/code/naver
spring.security.oauth2.client.registration.naver.authorization-grant-type=authorization_code
spring.security.oauth2.client.registration.naver.scope=name,email

#provider
spring.security.oauth2.client.provider.naver.authorization-uri=https://nid.naver.com/oauth2.0/authorize
spring.security.oauth2.client.provider.naver.token-uri=https://nid.naver.com/oauth2.0/token
spring.security.oauth2.client.provider.naver.user-info-uri=https://openapi.naver.com/v1/nid/me
spring.security.oauth2.client.provider.naver.user-name-attribute=response

#GOOGLE
#registration
spring.security.oauth2.client.registration.google.client-name=google
spring.security.oauth2.client.registration.google.client-id=아이디
spring.security.oauth2.client.registration.google.client-secret=비밀번호
spring.security.oauth2.client.registration.google.redirect-uri=http://localhost:8080/login/oauth2/code/google
spring.security.oauth2.client.registration.google.authorization-grant-type=authorization_code
spring.security.oauth2.client.registration.google.scope=profile,email



네이버 소셜 로그인 요청 경로

GET : /oauth2/authorization/naver



---

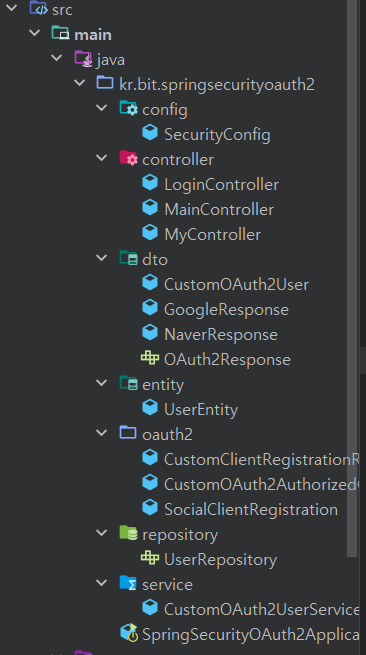

패키지 구성

OAuth2UserService

package kr.bit.oauth2jwt.service;


import kr.bit.oauth2jwt.dto.*;
import kr.bit.oauth2jwt.entity.UserEntity;
import kr.bit.oauth2jwt.repository.UserRepository;
import org.springframework.security.oauth2.client.userinfo.DefaultOAuth2UserService;
import org.springframework.security.oauth2.client.userinfo.OAuth2UserRequest;
import org.springframework.security.oauth2.core.OAuth2AuthenticationException;
import org.springframework.security.oauth2.core.user.OAuth2User;
import org.springframework.stereotype.Service;

@Service
public class CustomOAuth2UserService extends DefaultOAuth2UserService {

    private final UserRepository userRepository;

    public CustomOAuth2UserService(UserRepository userRepository) {
        this.userRepository = userRepository;
    }


    @Override
    public OAuth2User loadUser(OAuth2UserRequest userRequest) throws OAuth2AuthenticationException {

        OAuth2User oAuth2User = super.loadUser(userRequest);
        System.out.println(oAuth2User.getAttributes());

        //어느 소셜 아이디인지 구분
        String registrationId = userRequest.getClientRegistration().getRegistrationId();
        OAuth2Response oAuth2Response = null;

        if (registrationId.equals("naver")) {

            oAuth2Response = new NaverResponse(oAuth2User.getAttributes());

        } else if (registrationId.equals("google")) {

            oAuth2Response = new GoogleResponse(oAuth2User.getAttributes());

        } else {

            return null;
        }

        String username = oAuth2Response.getProvider() + " " + oAuth2Response.getProviderId();
        UserEntity existData = userRepository.findByUsername(username);

        if (existData == null) {

            UserEntity userEntity = new UserEntity();
            userEntity.setUsername(username);
            userEntity.setEmail(oAuth2Response.getEmail());
            userEntity.setName(oAuth2Response.getName());
            userEntity.setRole("ROLE_USER");

            userRepository.save(userEntity);

            UserDTO userDTO = new UserDTO();
            userDTO.setUsername(username);
            userDTO.setName(oAuth2Response.getName());
            userDTO.setRole("ROLE_USER");

            return new CustomOAuth2User(userDTO);

        } else {

            existData.setEmail(oAuth2Response.getEmail());
            existData.setName(oAuth2Response.getName());

            userRepository.save(existData);

            UserDTO userDTO = new UserDTO();
            userDTO.setUsername(existData.getUsername());
            userDTO.setName(existData.getName());
            userDTO.setRole(existData.getRole());

            return new CustomOAuth2User(userDTO);
        }


    }

}



UserDTO

package kr.bit.oauth2jwt.dto;

import lombok.Getter;
import lombok.Setter;

@Getter
@Setter
public class UserDTO {

    private String role;
    private String name;
    private String username;

}



CustomOAuth2User

package kr.bit.oauth2jwt.dto;


import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.oauth2.core.user.OAuth2User;

import java.util.ArrayList;
import java.util.Collection;
import java.util.List;
import java.util.Map;

public class CustomOAuth2User implements OAuth2User {

    private final UserDTO userDTO;


    public CustomOAuth2User( UserDTO userDTO) {
        this.userDTO = userDTO;
    }


    @Override
    public Map<String, Object> getAttributes() {
        return null;
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {

        Collection<GrantedAuthority> collection = new ArrayList<>();
        collection.add(new GrantedAuthority() {
            @Override
            public String getAuthority() {
                return userDTO.getRole();
            }
        });

        return collection;
    }

    @Override
    public String getName() {

        return userDTO.getName();
    }

    public String getUsername() {
        return userDTO.getUsername();
    }
}



UserEntity

package kr.bit.oauth2jwt.entity;

import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;
import lombok.Getter;
import lombok.Setter;

@Entity
@Getter
@Setter
public class UserEntity {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String username;
    private String name;
    private String email;
    private String role;
}





나머지 클래스는 이 전에 포스팅한 세션방식과 동일함



---

JWT

application.properties

암호화키 추가

spring.jwt.secret=sksmsrhtnrkehlfrjdidmgkgkslrkanjfdkfdksorkwpdlfwkfskrk



jwt / JWTUtil(0.12.3)

package kr.bit.oauth2jwt.jwt;

import io.jsonwebtoken.Jwts;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.stereotype.Component;

import javax.crypto.SecretKey;
import javax.crypto.spec.SecretKeySpec;
import java.nio.charset.StandardCharsets;
import java.util.Date;

@Component
public class JWTUtil {

    private SecretKey secretKey;

    public JWTUtil(@Value("${spring.jwt.secret}")String secret) {


        secretKey = new SecretKeySpec(secret.getBytes(StandardCharsets.UTF_8), Jwts.SIG.HS256.key().build().getAlgorithm());
    }

    public String getUsername(String token) {

        return Jwts.parser().verifyWith(secretKey).build().parseSignedClaims(token).getPayload().get("username", String.class);
    }

    public String getRole(String token) {

        return Jwts.parser().verifyWith(secretKey).build().parseSignedClaims(token).getPayload().get("role", String.class);
    }

    public Boolean isExpired(String token) {

        return Jwts.parser().verifyWith(secretKey).build().parseSignedClaims(token).getPayload().getExpiration().before(new Date());
    }

    public String createJwt(String username, String role, Long expiredMs) {

        return Jwts.builder()
                .claim("username", username)
                .claim("role", role)
                .issuedAt(new Date(System.currentTimeMillis()))
                .expiration(new Date(System.currentTimeMillis() + expiredMs))
                .signWith(secretKey)
                .compact();
    }
}

---

로그시 성공시 JWT 발급

oauth2 / CustomSuccessHandler

package kr.bit.oauth2jwt.oauth2;

import jakarta.servlet.ServletException;
import jakarta.servlet.http.Cookie;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import kr.bit.oauth2jwt.dto.CustomOAuth2User;
import kr.bit.oauth2jwt.jwt.JWTUtil;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.web.authentication.SimpleUrlAuthenticationSuccessHandler;
import org.springframework.stereotype.Component;

import java.io.IOException;
import java.util.Collection;
import java.util.Iterator;

@Component
public class CustomSuccessHandler extends SimpleUrlAuthenticationSuccessHandler {

    private final JWTUtil jwtUtil;

    public CustomSuccessHandler(JWTUtil jwtUtil) {
        this.jwtUtil = jwtUtil;

    }

    @Override
    public void onAuthenticationSuccess(HttpServletRequest request, HttpServletResponse response, Authentication authentication) throws IOException, ServletException {

        //OAuth2User
        CustomOAuth2User customUserDetails = (CustomOAuth2User) authentication.getPrincipal();

        String username = customUserDetails.getUsername();

        Collection<? extends GrantedAuthority> authorities = authentication.getAuthorities();
        Iterator<? extends  GrantedAuthority> iterator = authorities.iterator();
        GrantedAuthority auth = iterator.next();
        String role = auth.getAuthority();

        String token = jwtUtil.createJwt(username, role, 60*60*60L);

        response.addCookie(createCookie("Authorization", token));
        response.sendRedirect("http://localhost:3000/");
    }

    private Cookie createCookie(String key, String value) {

        Cookie cookie = new Cookie(key, value);
        cookie.setMaxAge(60*60*60);
        //cookie.setSecure(ture);
        cookie.setPath("/");
        cookie.setHttpOnly(true);

        return cookie;
    }
}



SecurityConfig

package kr.bit.oauth2jwt.config;

import kr.bit.oauth2jwt.jwt.JWTUtil;
import kr.bit.oauth2jwt.oauth2.CustomSuccessHandler;
import kr.bit.oauth2jwt.service.CustomOAuth2UserService;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.web.SecurityFilterChain;

@Configuration
@EnableWebSecurity
public class SecurityConfig {

    private final CustomOAuth2UserService customOAuth2UserService;
    private final CustomSuccessHandler customSuccessHandler;
    private final JWTUtil jwtUtil;

    public SecurityConfig(CustomOAuth2UserService customOAuth2UserService, CustomSuccessHandler customSuccessHandler, JWTUtil jwtUtil) {
        this.customOAuth2UserService = customOAuth2UserService;
        this.customSuccessHandler = customSuccessHandler;
        this.jwtUtil = jwtUtil;
    }

    @Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {

        //csrf disable
        http
                .csrf((auth) -> auth.disable());

        //From 로그인 방식 disable
        http
                .formLogin((auth) -> auth.disable());

        //HTTP Basic 인증 방식 disable
        http
                .httpBasic((auth) -> auth.disable());

        //oauth2
        http
                .oauth2Login((oauth2) -> oauth2
                        .userInfoEndpoint((userInfoEndpointConfig) -> userInfoEndpointConfig
                                .userService(customOAuth2UserService))
                        .successHandler(customSuccessHandler));

        //경로별 인가 작업
        http
                .authorizeHttpRequests((auth) -> auth
                        .requestMatchers("/").permitAll()
                        .anyRequest().authenticated());

        //세션 설정 : STATELESS
        http
                .sessionManagement((session) -> session
                        .sessionCreationPolicy(SessionCreationPolicy.STATELESS));

        return http.build();
    }
}

---

검증

JWT Filter

package kr.bit.oauth2jwt.jwt;

import jakarta.servlet.FilterChain;
import jakarta.servlet.ServletException;
import jakarta.servlet.http.Cookie;
import jakarta.servlet.http.HttpServletRequest;
import jakarta.servlet.http.HttpServletResponse;
import kr.bit.oauth2jwt.dto.CustomOAuth2User;
import kr.bit.oauth2jwt.dto.UserDTO;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.web.filter.OncePerRequestFilter;

import java.io.IOException;

public class JWTFilter extends OncePerRequestFilter {

    private final JWTUtil jwtUtil;

    public JWTFilter(JWTUtil jwtUtil) {

        this.jwtUtil = jwtUtil;
    }

    @Override
    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {

        String authorization = null;
        Cookie[] cookies = request.getCookies();
        for (Cookie cookie : cookies) {

            System.out.println(cookie.getName());
            if (cookie.getName().equals("Authorization")) {

                authorization = cookie.getValue();
            }
        }

        //Authorization 헤더 검증
        if (authorization == null) {
            System.out.println("token is null");
            filterChain.doFilter(request, response);

            //조건이 해당되면 메소드 종료 (필수)
            return;
        }

        //토큰
        String token = authorization;

        //토큰 소멸 시간 검증
        if (jwtUtil.isExpired(token)) {

            System.out.println("token is expired");
            filterChain.doFilter(request, response);

            //조건이 해당되면 메소드 종료 (필수)
            return;
        }

        //토큰에서 username과 role 획득
        String username = jwtUtil.getUsername(token);
        String role = jwtUtil.getRole(token);

        //userDTO를 생성하여 값 set
        UserDTO userDTO = new UserDTO();
        userDTO.setUsername(username);
        userDTO.setRole(role);

        //UserDetails에 회원 정보 객체 담기
        CustomOAuth2User customOAuth2User = new CustomOAuth2User(userDTO);

        // 스프링 시큐리티 인증 토큰 생성
        Authentication authToken = new UsernamePasswordAuthenticationToken(customOAuth2User, null, customOAuth2User.getAuthorities());
        //세션에 사용자 등록
        SecurityContextHolder.getContext().setAuthentication(authToken);

        filterChain.doFilter(request, response);
    }
}



SecurityConfig

코드 추가



http
	.addFilterBefore(new JWTFilter(jwtUtil), UsernamePasswordAuthenticationFilter.class);

---

CORS

SecurityConfig

코드 추가

@Bean
    public SecurityFilterChain filterChain(HttpSecurity http) throws Exception {

        http
                .cors(corsCustomizer -> corsCustomizer.configurationSource(new CorsConfigurationSource() {

                    @Override
                    public CorsConfiguration getCorsConfiguration(HttpServletRequest request) {

                        CorsConfiguration configuration = new CorsConfiguration();

                        configuration.setAllowedOrigins(Collections.singletonList("http://localhost:3000"));
                        configuration.setAllowedMethods(Collections.singletonList("*"));
                        configuration.setAllowCredentials(true);
                        configuration.setAllowedHeaders(Collections.singletonList("*"));
                        configuration.setMaxAge(3600L);

                        configuration.setExposedHeaders(Collections.singletonList("Set-Cookie"));
                        configuration.setExposedHeaders(Collections.singletonList("Authorization"));

                        return configuration;
                    }
                }));



config / CorsMvcConfig

package kr.bit.oauth2jwt.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.CorsRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;

@Configuration
public class CorsMvcConfig implements WebMvcConfigurer {

    @Override
    public void addCorsMappings(CorsRegistry corsRegistry) {

        corsRegistry.addMapping("/**")
                .exposedHeaders("Set-Cookie")
                .allowedOrigins("http://localhost:3000");
    }
}

---

무한리다이렉트 에러 해결



        //JWTFilter 추가
        http
                .addFilterAfter(new JWTFilter(jwtUtil), OAuth2LoginAuthenticationFilter.class);

//        //JWTFilter 추가
//        http
//                .addFilterBefore(new JWTFilter(jwtUtil), UsernamePasswordAuthenticationFilter.class);
